From daily watering to seasonal schedules, the YL21194 helps you save water and keep your garden thriving with flexible interval and weekly programming options
The YL21194 Irrigation Timer combines user-friendly operation with advanced watering automation, allowing you to set start times, duration, and frequency with ease. Its 12-hour clock format supports AM/PM settings, and the system can be programmed to water at specific times of the day, on selected days of the week, or at regular intervals. The rain delay feature helps you avoid overwatering by letting you suspend irrigation for up to 7 days. With support for four zones, you can customize watering plans for different parts of your garden—all from one central device. The timer also includes a low-battery indicator and a water-resistant housing, ensuring durability and reliable operation season after season.
Easy Programming – Simple dial and press-knob interface for quick setup of watering schedules
Multi-Zone Support – Control up to 4 independent watering zones
Dual Frequency Modes – Choose between interval-based or day-of-the-week scheduling
Rain Delay Function – Pause watering during wet weather to conserve water
Manual Watering Option – Instant manual control for on-demand irrigation
Battery-Powered – Runs on 2 AA alkaline batteries for easy, wire-free installation
Clear LCD Display – Shows all settings, remaining watering time, battery level, and active modes
Auto & Off Modes – Fully automated operation or complete system shut-down with reset option
Weather-Resistant Design – Built to withstand outdoor conditions
Product Overview:

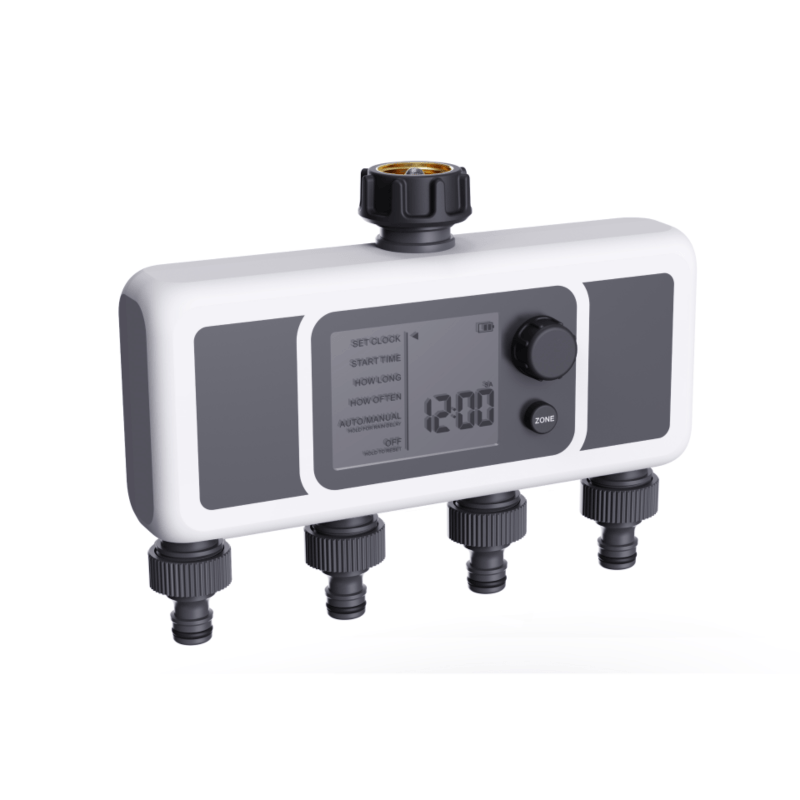

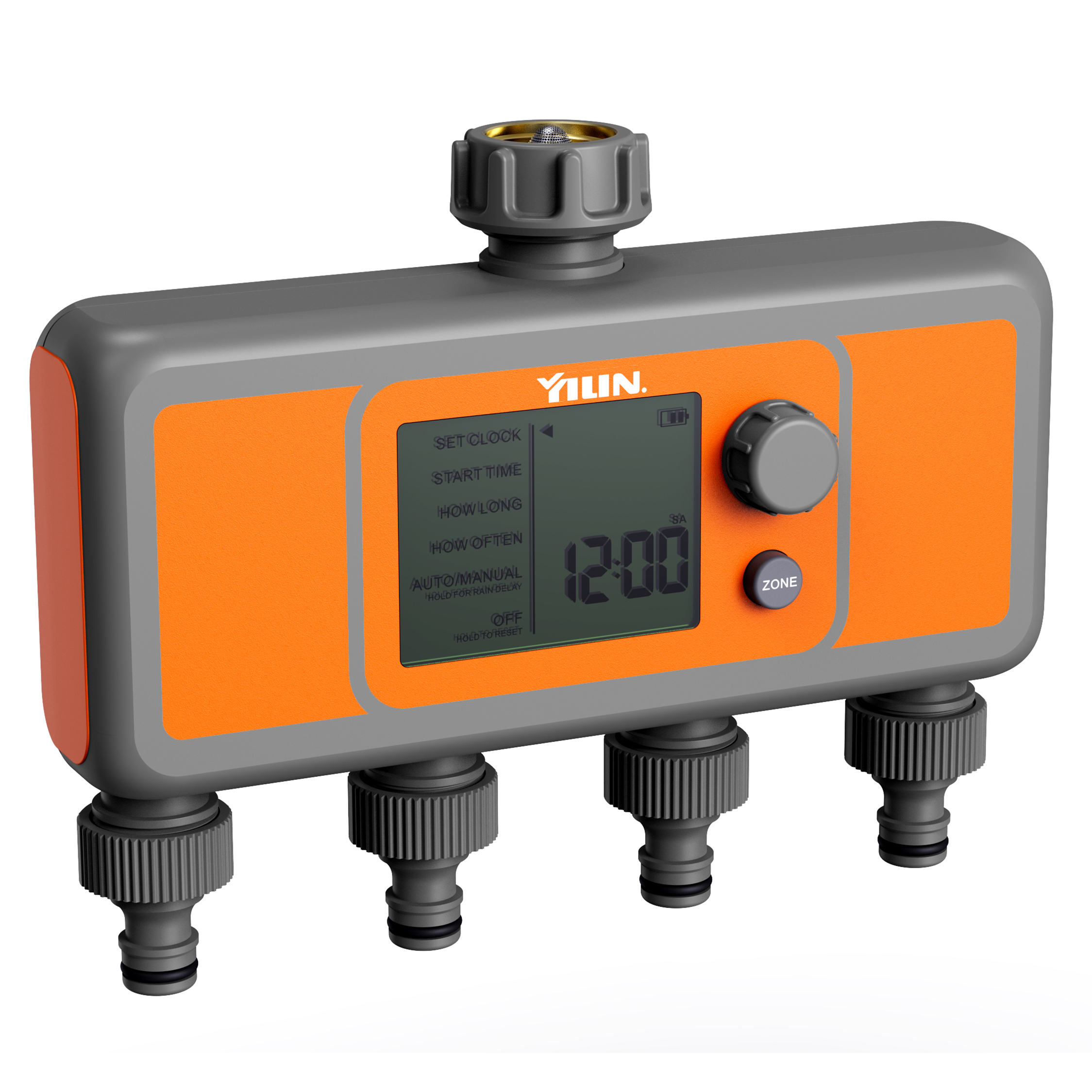

The YL21194 is a feature-rich, 4-zone automatic irrigation timer designed for effortless lawn and garden care. With its intuitive dial interface and clear LCD screen, it provides precise control over watering schedules, helping you conserve water and maintain a healthy landscape.
| Category | Specification |
|---|---|
| Model Number | YL21194 |
| Power Supply | 3V DC (2 x AA 1.5V Alkaline Batteries) |
| Watering Zones | 4 independent zones |
| Watering Duration | 1 to 240 minutes per zone |
| Scheduling Modes |
Interval Mode: 1H, 3H, 6H, 12H, 1-7 days Week Mode: Select specific days (Sun-Sat) |
| Rain Delay Feature | Programmable delay from 6H, 12H, up to 7 days |
| Operating Water Pressure | 0.5 Bar - 8 Bar (≈ 7 PSI - 116 PSI) |
| Flow Rate | ≥ 30 Liters per Minute (at 4 Bar pressure) |
| Inlet Connection | 3/4 inch Internal Thread (Garden Hose) |
| Outlet Connection | 3/4 inch External Thread |
| Operating Temperature | 5°C to 60°C (41°F to 140°F) |
| Display | Backlit LCD with intuitive icons |
